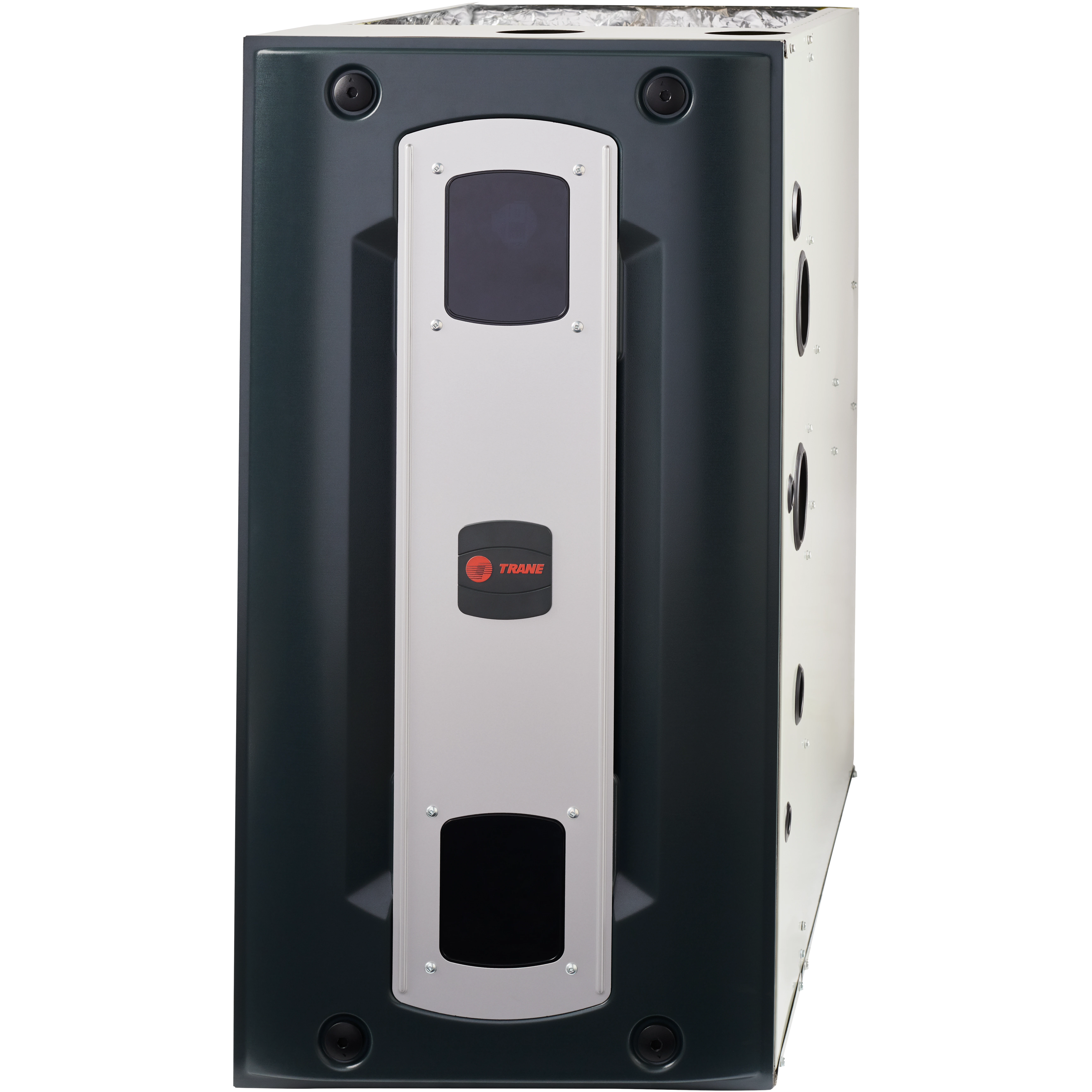

Trane® S9V2-PS 120,000 BTU 5T Two Stage Var Downflow Gas Furnace
CA$7,032.50
Two stage downflow gas furnace with direct drive, variable speed ECM blower motor, 24.5" wide, 120,000 BTU, 5T, up to 96% AFUE
Key Features
- Comfort-R™ enhanced mode (cooling)
Accessories & Parts
Loading...
| Input Maximum [BTU] | 120000 |
| Type of Refrigerant | R410A |
| 1st Stage Output [BTU|H] | 63050 |
| 2nd Stage Output [BTU|H] | 97000 |
| Airflow Configuration | Downflow |
| Number of Stages | Two Stage |
| Filter Height [Inches] | 25.000000 |
| Filter Width [inches] | 20.000000 |
| Filter Depth [inches] | 1.000000 |
| Input BTU | 120000 |
Product Dimensions
| Product Height [Inches]: | 34.00000 |
| Product Width [Inches]: | 24.50000 |
| Product Length [Inches]: | 28.75000 |
Shipping Dimensions
| SXE Shipping Height [Inches]: | 36.00000 |
| SXE Shipping Width [Inches]: | 28.50000 |
| SXE Shipping Length [Inches]: | 32.00000 |
| SXE Shipping Weight [Pounds]: | 167.00000 |
